Trapmate Hub
$189.00
The Trapmate Hub is the central gateway of the Trapmate multi-trap electronic remote monitoring (ERM) system. Using a combination of long-range RF and cellular connectivity, the Hub links Trapmate sensors—up to hundreds of feet away—to the Trapmate platform, accessible from your phone or desktop.
Powered by just three AA lithium batteries, the Hub delivers over a year of continuous operation—no external power required.
Its fully battery-powered design allows for flexible placement on walls, rooftops, or other elevated locations, optimizing signal strength while keeping the device out of the way of foot and equipment traffic.
Designed for simplicity, the Hub is a true drop-and-go solution—no pairing, Wi-Fi, passwords, or on-site infrastructure required.
Requirements:
• One or more Trapmate sensors
• Active subscription
• Available in the United States and Canada
If you’d like to purchase multiple Hubs, please contact our team to learn more about our enterprise pricing plans.
Description

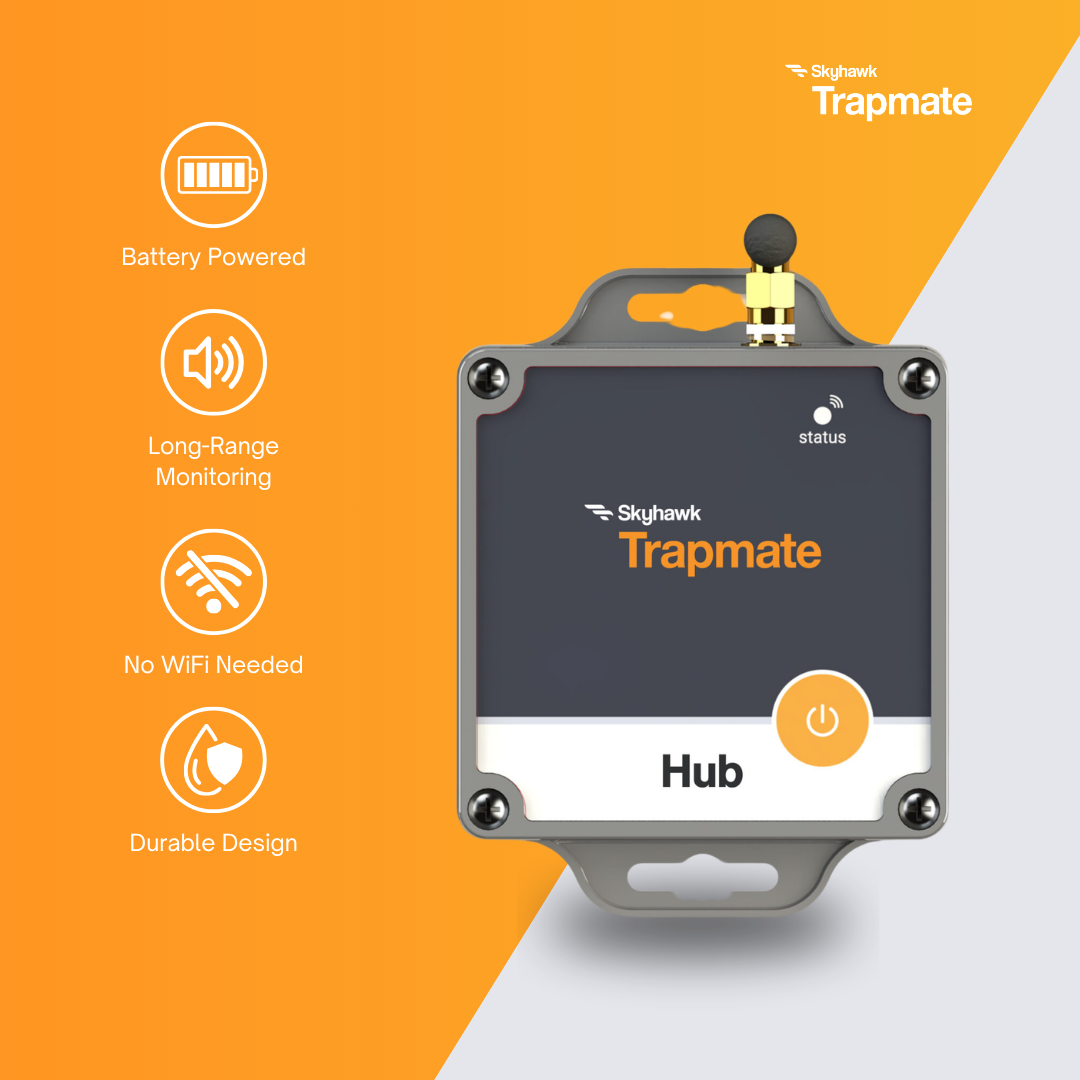

Product Overview
The Trapmate Hub is a battery-powered RF and cellular gateway that serves as the central connection point for your Trapmate electronic remote monitoring (ERM) system. It links all deployed Trapmate sensors to the Trapmate platform, delivering real-time visibility across your entire operation.
Connectivity & Range
Using proprietary 915 MHz radio frequency communication, the Hub connects to Trapmate sensors at distances of up to 2,000 feet line-of-sight.
In real-world environments, in-building range will vary based on layout, wall materials, and obstructions, but typically extends hundreds of feet within most facilities. For optimal performance, the Hub can be mounted in an elevated location to maximize coverage.
The Hub communicates with the Trapmate mobile app and web portal via a reliable cellular connection. Only a minimal signal—comparable to sending a text message—is required for consistent operation, allowing deployments in areas where connectivity is limited.
Power & Placement
- Powered by 3 AA lithium batteries
- Over 1 year of battery life
- Field-replaceable batteries
Because the Hub is fully battery-powered, it can be installed virtually anywhere—without reliance on external power or Wi-Fi. This allows for discreet placement out of sight of clients and away from potential interference such as foot or equipment traffic.
Installation & Deployment
- True drop-and-go setup — no pairing, passwords, or infrastructure required
- No Wi-Fi or external power needed
- Automatically connects with deployed Trapmate sensors
- Flexible mounting options for optimal signal performance
Subscription & Availability
- Subscription plans available based on deployment needs
- Volume-based pricing available for enterprise customers
- Available in the United States and Canada
For detailed pricing or enterprise inquiries, contact the Skyhawk team.
Additional information
| Weight | 16 oz |
|---|---|

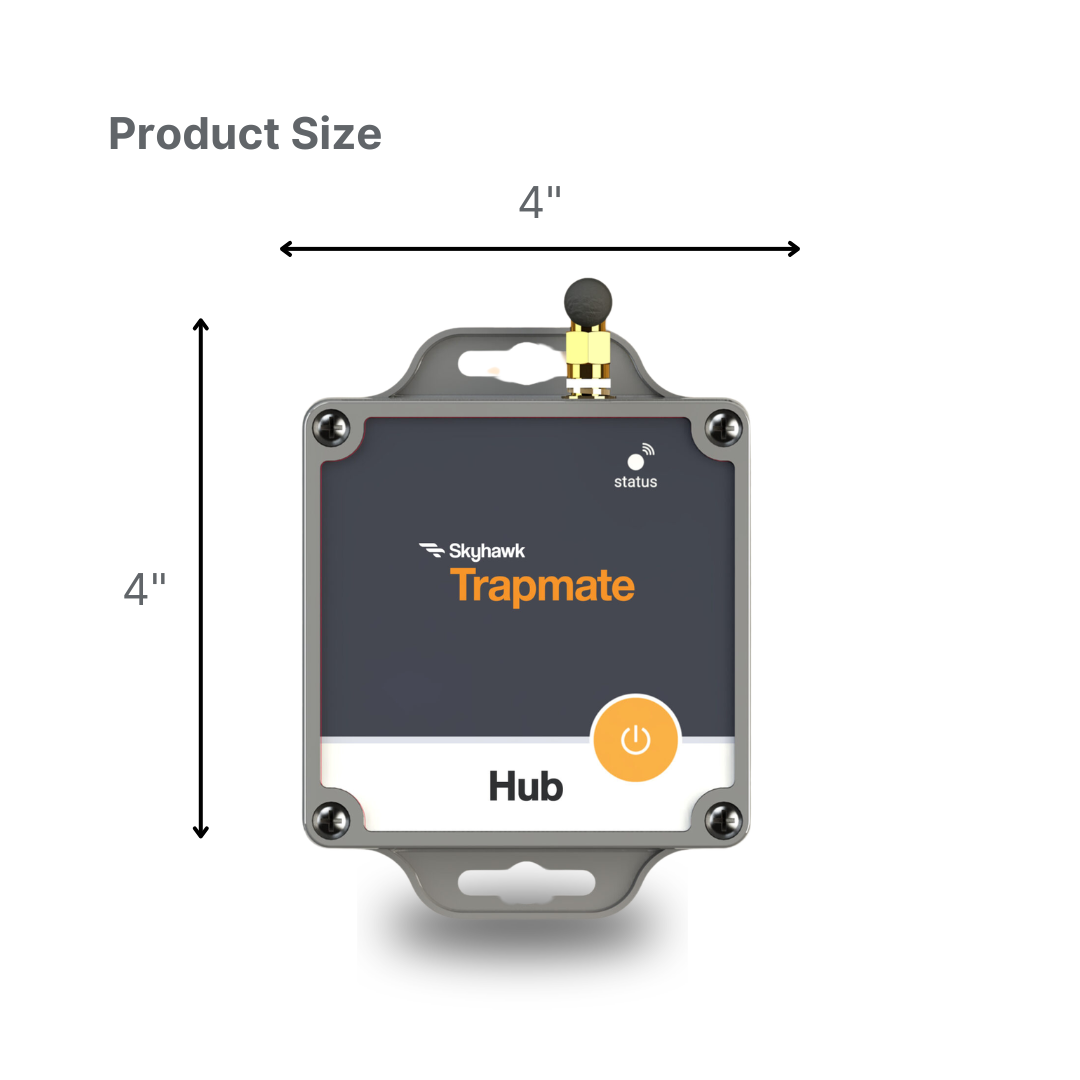

| Dimensions | 4 × 4 × 1.3 in |
Specifications
| MECHANICAL | |
| Size (L x W x H) | 4.00 x 4.00 x 1.30 in / 10.16 x 10.16 x 3.30 cm |
| Weight | 16oz / 454g |
| Operational Temperature | 0F° to 140F° / -18C° to 60C° |
| Operational Humidity | 10 to 100% RH |
| Ingress Protection | IP64/67 |
| Material | Lexan |
| Mounting | Mounting ears, magnets or velcro |
| POWER | |
| Power Source | 3 x AA primary lithium batteries; external power source optional |
| Average Power Usage | < 1mW |
| Power Lifetime | 1-2 years |
| External Power Connection | Optional: USB-C or energy harvester |
| COMMUNICATIONS | |
| Backbone to Cloud | LTE CAT-M1 |
| Local RF | 915 ISM, GFSK, <1W |
| Local RF LOS Range | 2000 ft / 610 m |
| Antenna Type | Internal or external |
| Radio Transmit Frequency | NA |
| Radio Transmit Power | Up to 1W |
| Supported Signals | Alerts and polling. Low data. |
| FOTA | Y |
| Data Security | VPN |
| Regulatory (US) | FCC 15.247 |
| Environmental | UL |
| EMC | N/A |
